PRODUCT CENTER

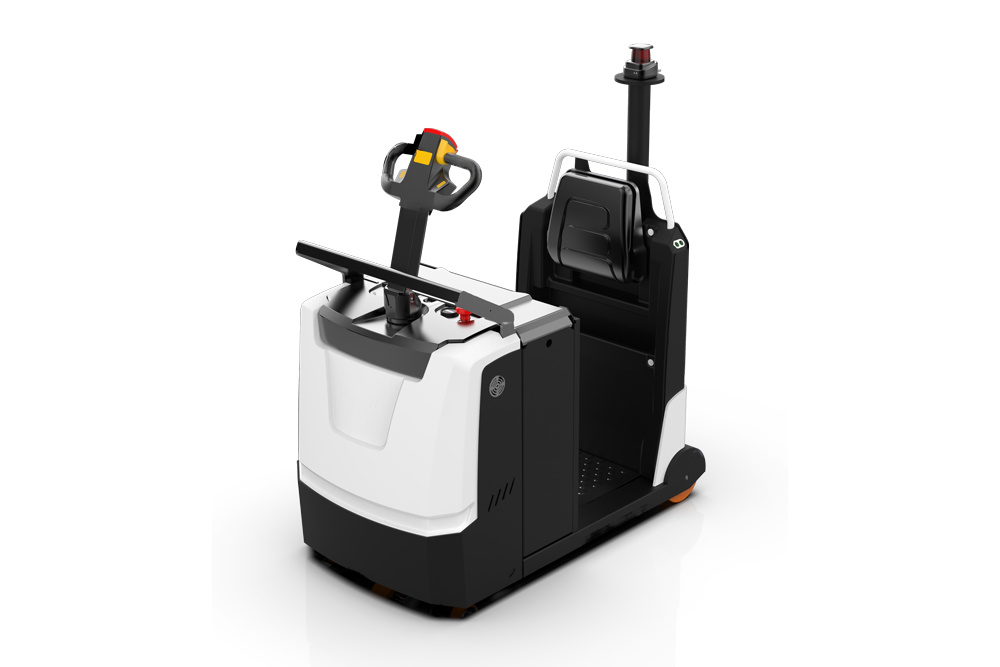

AT
Autonomous tow tractors with LIDAR SLAM navigation, designed for heavy duty with big dimensions that cannot be carried by pallets.
Palabras clave：tools
Clasificación de productos：
Parameters
| AT50 | AT20/30 | |
| Maximum payload (kg) | 5000 | 2000/3000 |
| Vehicle dimension: L/W/H (mm) | 1845/1000/1850 | 1200/830/1800 |
| Minimum ground clearance (mm) | 50 | 50 |
| Speed (empty/loaded) (m/s) | 1.5/1.0 | 1.5/1.0 |
| Turning radius (mm) | 1400 | 895 |
| Minimum channel width (mm)safe distance a/2=50 | 1800 | 1320 |
| Max. gradeability (%) | 10/5 | 10/5 |
| Speed (empty/loaded) (m/s) | 1.5/1.0 | 1.5/1.0 |
| Power configuration | 24V/200Ah | 24V/100Ah |
| Charging time | 0.5C | 0.5C |
| Endurance time | 8h | 8h |
| Pasitioning accuracy | ±10mm | ±10mm |
| Safe distance | 5m | 5m |
| Communication mode | WiFi 2.4G/5.8G | WiFi 2.4G/5.8G |
